Hik-ProConnect is a new solution to help installers to improve work efficiency, smooth
work flow and make recurring revenues.

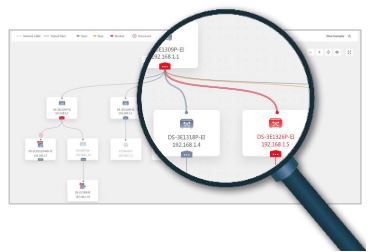

In the topology diagram, the lines will change color once network bandwidth overloads
so that operator can optimize the network in time to keep the system working normally.

Gray line refers to network bandwidth
consumption < 60%.
– Yellow line refers to 60% ≤ network
bandwidth consumption < 80%.
– Red line refers to network bandwidth
consumption ≥ 80%.

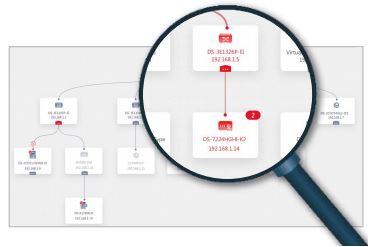

Devices exception refers to device problems like offline, HDD full, which will be sent to
installers on Hik-ProConnect once detected.

Switches exception type: port
blocked, port busy, PoE port power
off, RJ45 port disconnected, SPF port
disconnected, PoE power exceeds
limit, offline.
– Non-switch products exceptions can
be shown here as well.

System Visualization
Automatically generate topology diagrams, display network
architecture and node connection/bandwidth status in real
time.

Timely Risk Reminder
Timely learn about network equipment errors and bandwidth
usage, discover and repair/optimize network conditions in
time, and improve system availability.

Improve Efficiency

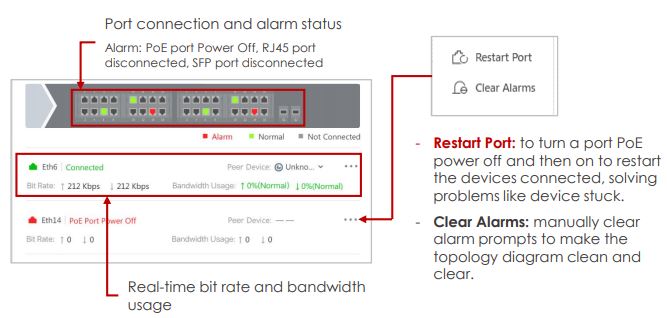

1) Quickly locate the problem port of the device for
corresponding operation and maintenance;
2) Remotely restart connected devices to solve device stuck
problem;
3) Support switch firmware cloud upgrade.
