Hikvision Temperature Screening Solution, with multiple product types and wide range of applications, is designed for the detection of skin-surface temperatures so as to achieve rapid and safe preliminary screening in public areas with high efficiency in a multitude of scenarios.
An approach that incorporates competent technologies, instead of manpower alone, can be a much better choice in many ways.
Such an approach is:
ADVANTAGES OF THERMAL TECHNOLOGY
- AI technology ensures thermographic cameras only detect human skin-surface temperature to reduce false alarms of other heat sources.
- Compensation algorithm ensures the temperature is compensated with ambient temperature and the distance of the measured target for better accuracy. The accuracy is ±0.5 ℃ of camera standalone system, and ±0.3 ℃ with blackbody calibrator.
- Thermal technology has been applied widely in temperature screening scenarios as it offers more flexibility and efficiency in preliminary screening of elevated skin-surface temperatures, with an accuracy of ±0.5 or ±0.3 with a blackbody calibrator.
Fixed Camera – Temperature Screening Solution
- Ideal for covering entrances, lobbies and hallways
- Increased safety, measure many people without physical contact
- High efficiency, only one second to detect a person
- High accuracy: camera standalone accuracy is ±0.5°C, and up to ±0.3°C with a Blackbody calibrator
- Easy installation and configuration
Solution products:
- Temperature Screening bullet/turret camera: DS-2TD1217B-6/PA, DS-2TD2636B-13/P
- Blackbody Calibrator (*Optional): DS-2TE127-G4A
- Hikvision I series NVR: DS-7616NI-I2/16P
- PC with software (iVMS-4200 or HikCentral) (optional)
Accessories:
- Tripod: DS-2907ZJ
- Tripod adaptor: DS-2909ZJ / DS-2908ZJ
- Switch: DS-3E0109P-E(C)
- Monitor: DS-D5022FN

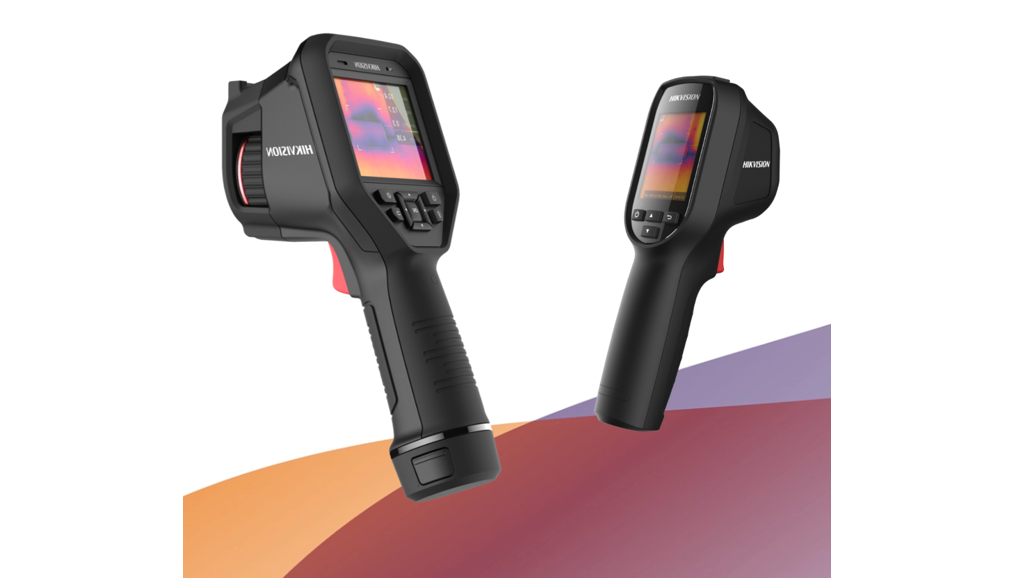

Handheld Wireless Mobile Camera – Temperature Screening Solution
- Ideal for mobile use, moving quickly between different venues
- Flexible and quick deployment
- Easy connection, cable free
- Increased safety, measure individuals without physical contact
Solution products:
- Temperature Screening handheld camera: DS-2TP21B-6AVF/W
- PC with software (iVMS4200) (optional)
Accessories:
- Tripod: DS-2907ZJ (Optional)

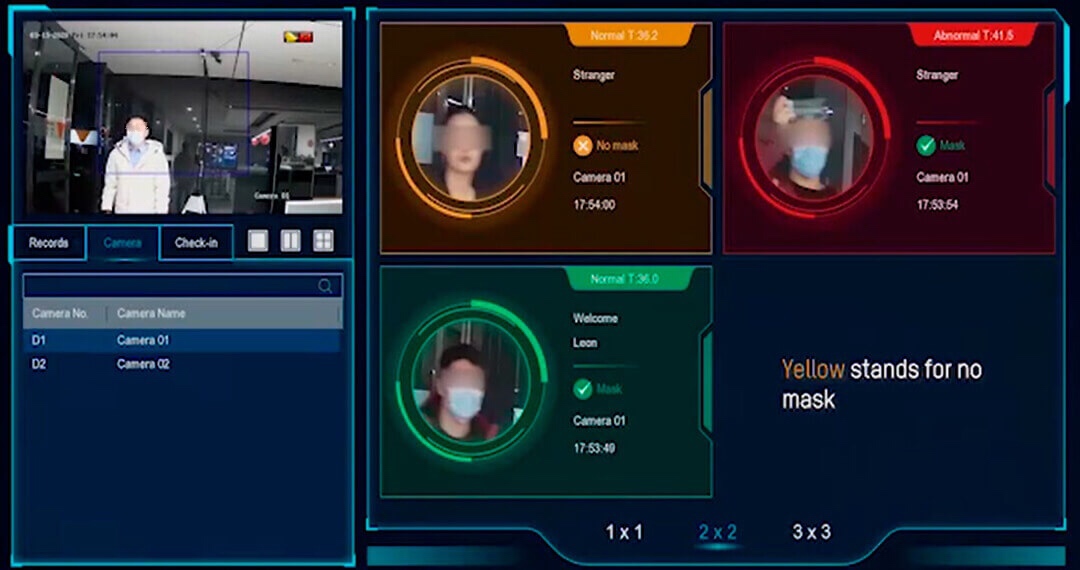

Face Mask Detection – Temperature Screening Solution
- Ideal for checking when and where face masks are required
- Clear intuitive display settings (for example):
- red for temperature
- orange for missing mask
- green for wearing mask and below set skin temperature
- Fast history search selected by temperature and/or mask status
Solution products:
- Temperature Screening bullet/turret camera: DS-2TD1217B-6/PA, DS-2TD2636B-13/P
- Blackbody Calibrator (*Optional): DS-2TE127-G4A
- Hikvision DeepinMind NVR: iDS-7716NXI-I4/16P/X(B)
- PC with software (iVMS-4200 or HikCentral) (optional)
Accessories:
- Tripod: DS-2907ZJ
- Tripod adaptor: DS-2909ZJ / DS-2908ZJ
- Switch: DS-3E0109P-E(C)
- Monitor: DS-D5022FN
Touch Free Access Control – Temperature Screening Solution
- Ideal for contactless doorway access
- Thermographic camera built-in delivering efficient temperature measurement
- Real-time skin-surface temperature display
- Face mask detection
Solution products:
- MinMoe Temperature Screening Terminal (DS-K1T671TM-3XF)
- Floor stand (optional) (DS-KAB671-B)
- PC with software(iVMS-4200 or HikCentral) (optional)

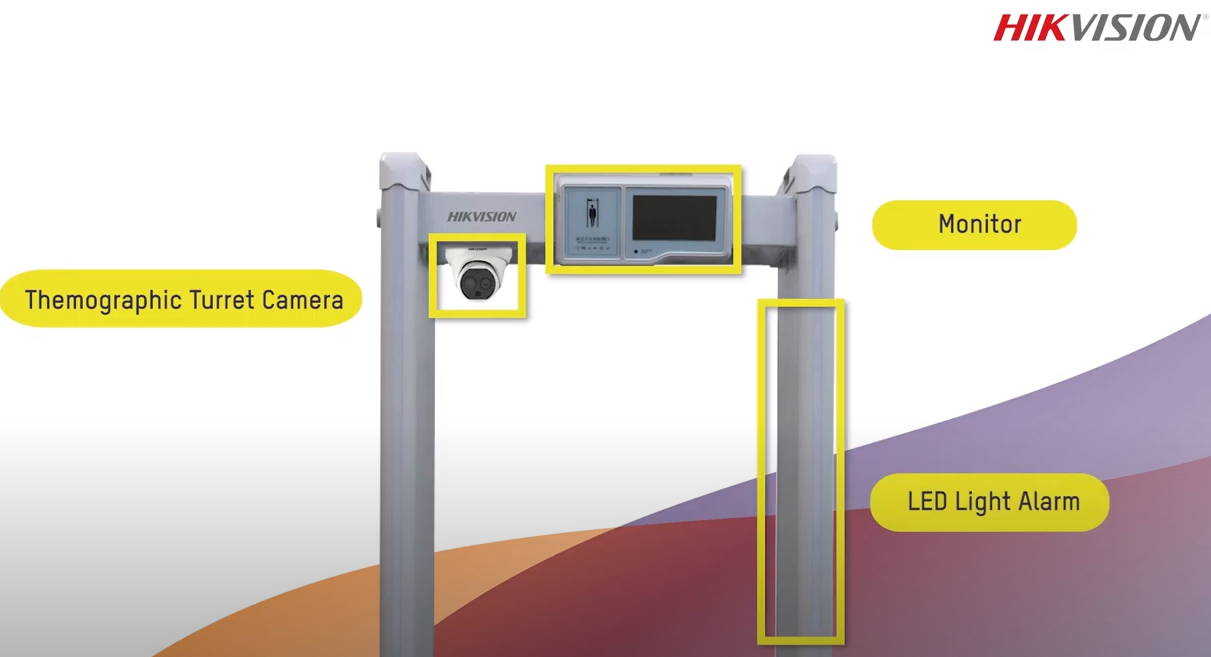

Entrance Metal Detector Door – Temperature Screening Solution
• Ideal for main entrances where immediate testing is required for both metal detection and skin surface temperature together
• On-board thermal camera providing accurate skin-surface temperature measurement
• Includes a live display for real time skin-surface temperature
• Light and audio alarm built-in
• Fast deployment
Solution products:
• Metal Detector Door (ISD-SMG318LT-F)
• PC with software(iVMS-4200 or HikCentral) (optional)
